MOSFET N-CH 150V 19A/187A 8HPSOF

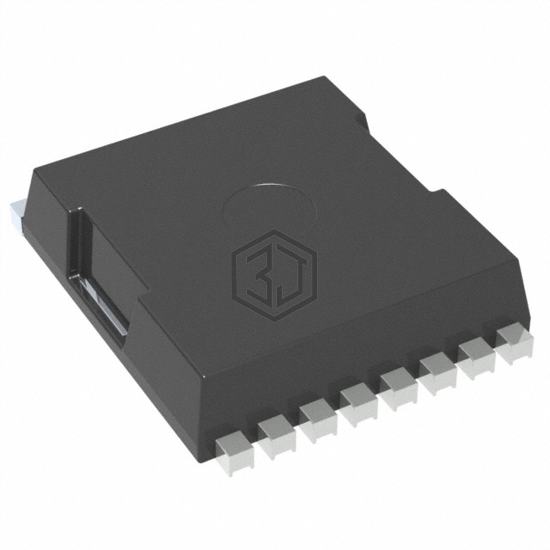

NVBLS4D0N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 19A/187A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.
In Stock: 1,880
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 187A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 584µA |
| Gate Charge (Qg) (Max) @ Vgs | 90.4 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7490 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.4W (Ta), 316W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HPSOF |
| Package / Case | 8-PowerSFN |
Submit your RFQ for NVBLS4D0N15MC and get a quote within 24 hours.
