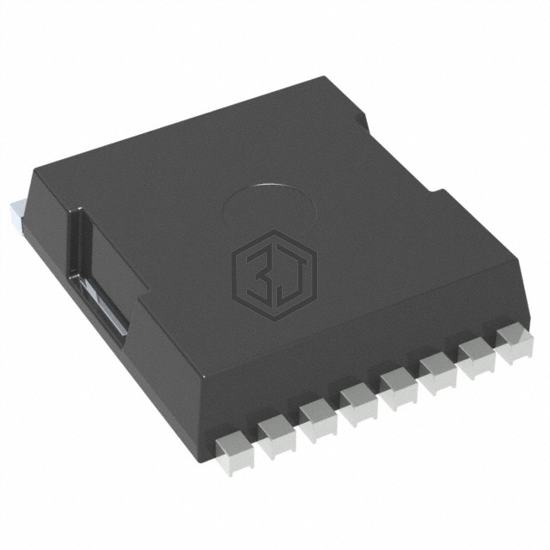

MOSFET N-CH 40V 300A 8HPSOF
NVBLS0D5N04M8TXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 300A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.
In Stock: 1,213
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 300A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 0.57mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 296 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 429W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HPSOF |
| Package / Case | 8-PowerSFN |
Submit your RFQ for NVBLS0D5N04M8TXG and get a quote within 24 hours.
