FILTER RC(PI) 100 OHM/28PF SMD

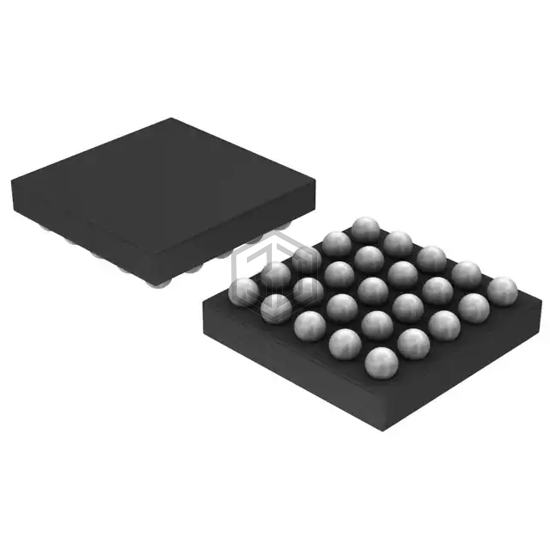

NUF9002FCT1 is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 100 OHM/28PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 25-UFBGA, FCBGA, size / dimension 0.104" L x 0.104" W (2.65mm x 2.65mm).
In Stock: 48,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 10 |
| Center / Cutoff Frequency | 110MHz (Cutoff) |
| Attenuation Value | -25dB @ 900MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 28pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 25-UFBGA, FCBGA |
| Size / Dimension | 0.104" L x 0.104" W (2.65mm x 2.65mm) |
| Height | 0.026" (0.65mm) |
Submit your RFQ for NUF9002FCT1 and get a quote within 24 hours.
