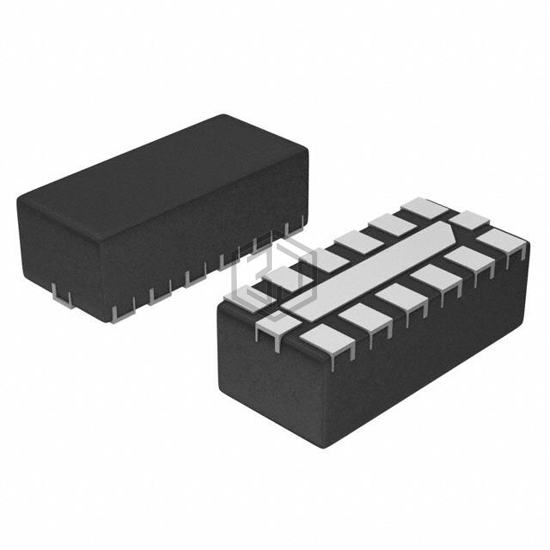

FILTER RC(PI) 100 OHM/17PF SMD
NUF6401MNT1G is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 100 OHM/17PF SMD. Key specifications: mounting type Surface Mount, operating temperature -45°C ~ 105°C, package / case 12-VFDFN Exposed Pad, size / dimension 0.118" L x 0.053" W (3.00mm x 1.35mm).
In Stock: 8,900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | 110MHz (Cutoff) |
| Attenuation Value | -30dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 17pF |
| ESD Protection | Yes |
| Operating Temperature | -45°C ~ 105°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad |
| Size / Dimension | 0.118" L x 0.053" W (3.00mm x 1.35mm) |
| Height | 0.039" (1.00mm) |
Submit your RFQ for NUF6401MNT1G and get a quote within 24 hours.
