FILTER RC(PI) 100 OHM/10PF SMD

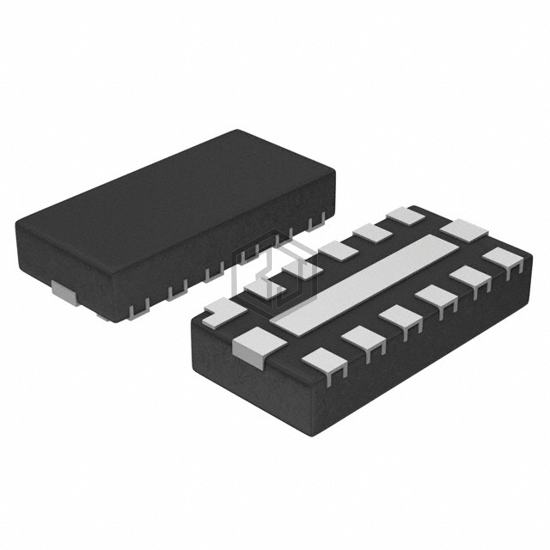

NUF6005MUT2G is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 100 OHM/10PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 12-UFDFN Exposed Pad, size / dimension 0.098" L x 0.047" W (2.50mm x 1.20mm).
In Stock: 103,533
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | 185MHz (Cutoff) |
| Attenuation Value | -25dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 10pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad |
| Size / Dimension | 0.098" L x 0.047" W (2.50mm x 1.20mm) |
| Height | 0.022" (0.55mm) |
Submit your RFQ for NUF6005MUT2G and get a quote within 24 hours.
