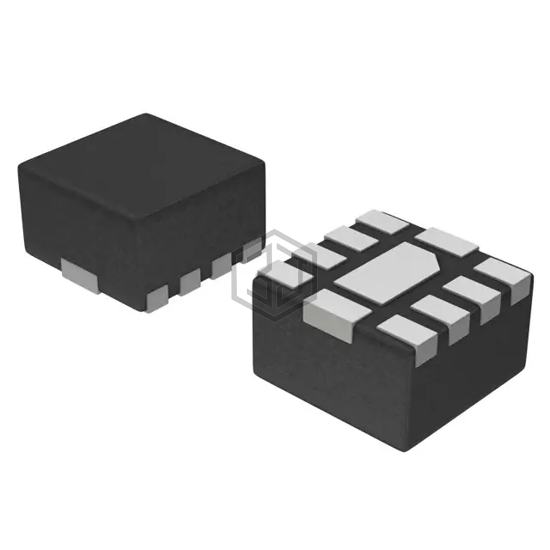

FILTER RC(PI) 100 OHM/17PF SMD
NUF4403MNT1G is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 100 OHM/17PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-VFDFN Exposed Pad, size / dimension 0.063" L x 0.063" W (1.60mm x 1.60mm).
In Stock: 166,619
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | 105MHz (Cutoff) |
| Attenuation Value | -35dB @ 800MHz ~ 2.2GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 17pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Size / Dimension | 0.063" L x 0.063" W (1.60mm x 1.60mm) |
| Height | 0.039" (1.00mm) |
Submit your RFQ for NUF4403MNT1G and get a quote within 24 hours.
