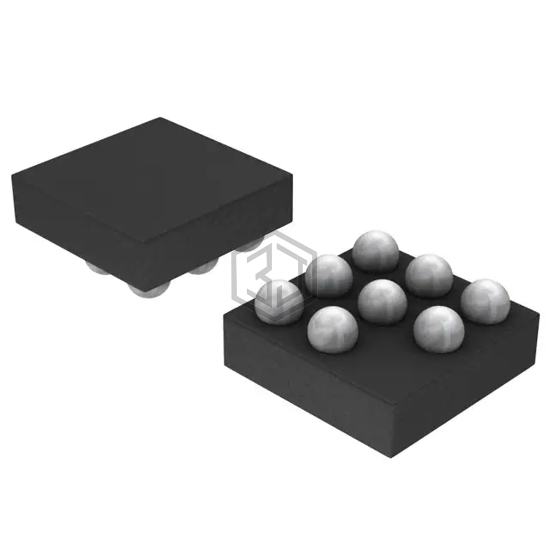

FILTER RC(PI) 300MHZ ESD SMD
NUF3101FCT1G is a EMI/RFI Filters (LC, RC Networks) manufactured by onsemi. FILTER RC(PI) 300MHZ ESD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WFBGA, FCBGA, size / dimension 0.061" L x 0.061" W (1.55mm x 1.55mm).
In Stock: 361,043
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 3 |
| Center / Cutoff Frequency | 300MHz (Cutoff) |
| Attenuation Value | -25dB @ 800MHz ~ 2.2GHz |
| Resistance - Channel (Ohms) | 47, 100 |
| Current | - |
| Values | R = 47Ohms, 100Ohms, C = 40pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFBGA, FCBGA |
| Size / Dimension | 0.061" L x 0.061" W (1.55mm x 1.55mm) |
| Height | 0.028" (0.70mm) |
Submit your RFQ for NUF3101FCT1G and get a quote within 24 hours.
