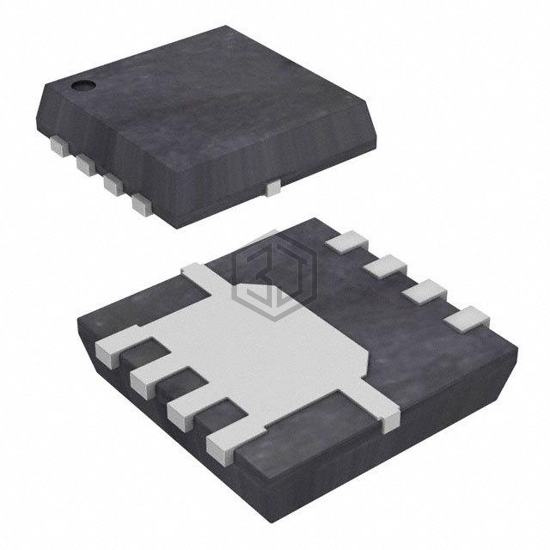

MOSFET N-CH 25V 22.4A/94A 8WDFN
NTTFS4H05NTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 22.4A/94A 8WDFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 218,180
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 22.4A (Ta), 94A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18.9 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1205 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.66W (Ta), 46.3W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for NTTFS4H05NTWG and get a quote within 24 hours.
