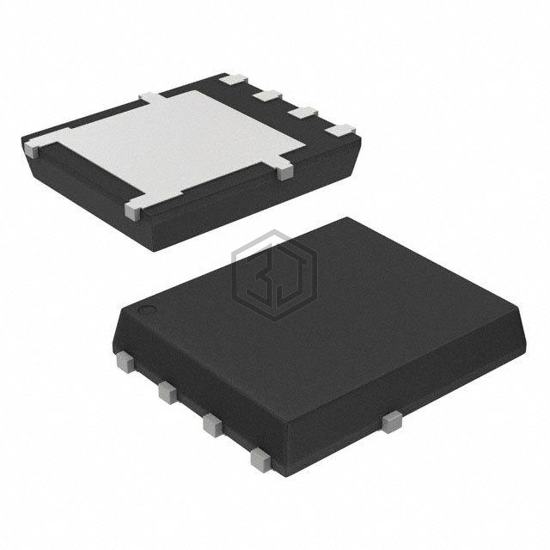

NTS10120MFST1G
DIODE SCHOTTKY 120V 10A 5DFN
NTS10120MFST1G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 120V 10A 5DFN. Key specifications: mounting type Surface Mount, package / case 8-PowerTDFN, 5 Leads.
In Stock: 2
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 120 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Operating Temperature - Junction | -55°C ~ 175°C |
Frequently Asked Questions
NTS10120MFST1G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 120V 10A 5DFN
The mounting type of NTS10120MFST1G is Surface Mount.
The package type of NTS10120MFST1G is 8-PowerTDFN, 5 Leads.
Yes, NTS10120MFST1G is listed as Obsolete. Consider requesting a quote for alternative parts.
