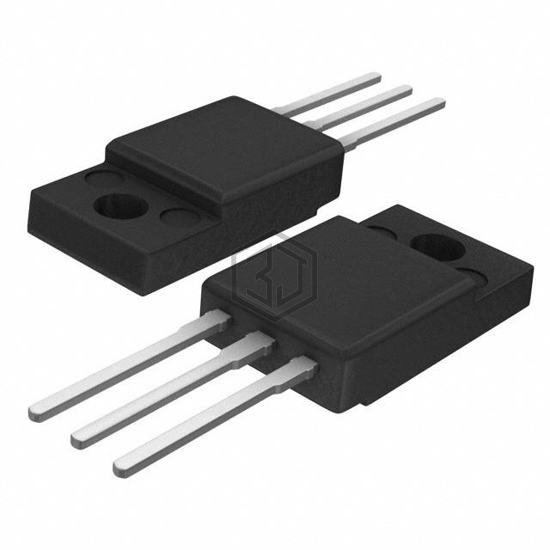

MOSFET N-CH 800V 13A TO220FP
NTPF360N80S3Z is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 800V 13A TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 6.5A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 300µA |
| Gate Charge (Qg) (Max) @ Vgs | 25.3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1143 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 31W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220FP |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for NTPF360N80S3Z and get a quote within 24 hours.
