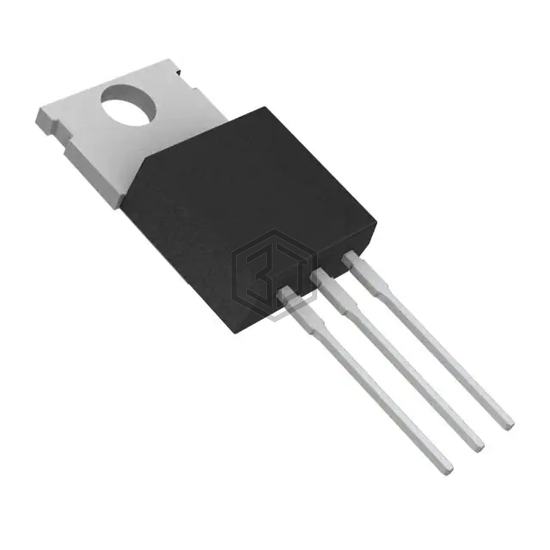

MOSFET N-CH 150V 12.1/101A TO220
NTP7D3N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 12.1/101A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.
In Stock: 1,448
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 12.1A (Ta), 101A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 62A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 342µA |
| Gate Charge (Qg) (Max) @ Vgs | 53 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4250 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta), 166W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
Submit your RFQ for NTP7D3N15MC and get a quote within 24 hours.
