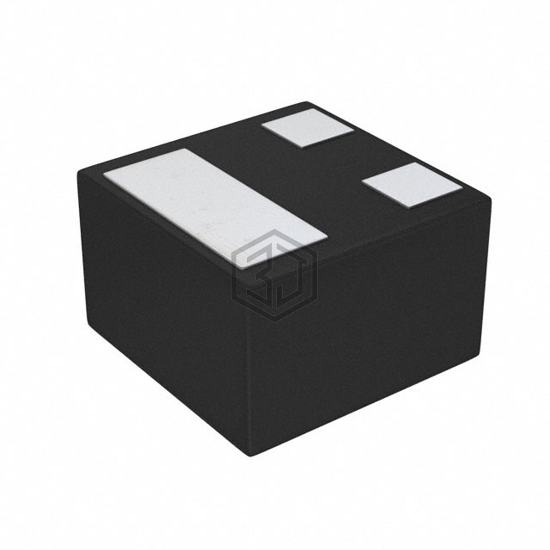

MOSFET N-CH 20V 224MA 3XLLGA
NTNS3193NZT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 224MA 3XLLGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFLGA.
In Stock: 25,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 224mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.7 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 15.8 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 120mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-XLLGA (0.62x0.62) |
| Package / Case | 3-XFLGA |
Submit your RFQ for NTNS3193NZT5G and get a quote within 24 hours.
