MOSFET N-CH 20V 220MA 3XDFN

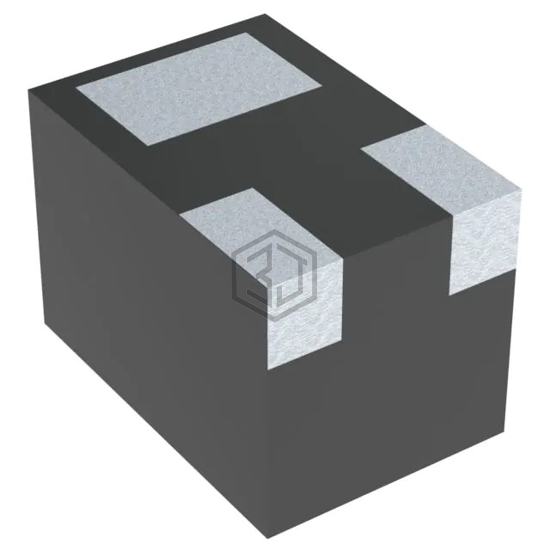

NTNS0K8N021ZTCG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 220MA 3XDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.
In Stock: 37,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 12.3 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 125mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-XDFN (0.42x0.62) |
| Package / Case | 3-XFDFN |
Submit your RFQ for NTNS0K8N021ZTCG and get a quote within 24 hours.
