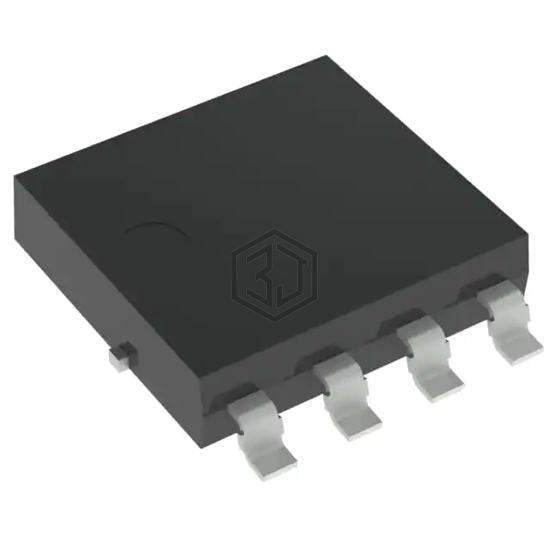

MOSFET N-CH 40V 41A/235A 8LFPAK
NTMJS1D3N04CTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 41A/235A 8LFPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56.
In Stock: 3,699
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Ta), 235A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 170µA |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4300 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 128W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-LFPAK |
| Package / Case | SOT-1205, 8-LFPAK56 |
Submit your RFQ for NTMJS1D3N04CTWG and get a quote within 24 hours.
