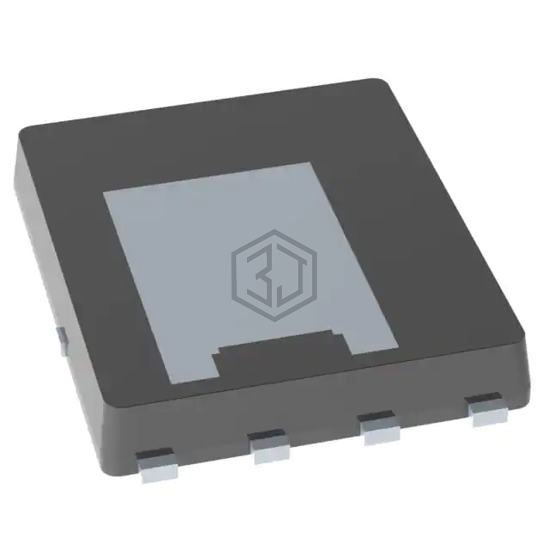

MOSFET N-CHANNEL 80V 61A
NTMFSC010N08M7 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CHANNEL 80V 61A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 6,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta), 61A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 120µA |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Ta), 78.1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6.15) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for NTMFSC010N08M7 and get a quote within 24 hours.
