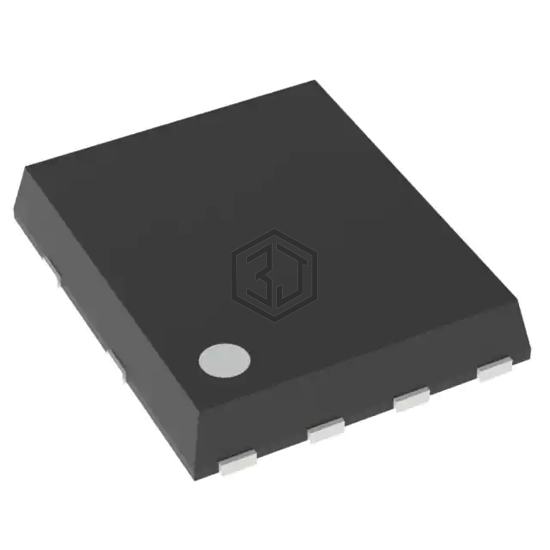

MOSFET N-CH 25V 15.2A/149A SO8FL
NTMFS4854NST3G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 15.2A/149A SO8FL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 15,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 15.2A (Ta), 149A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 3.2V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 85 nC @ 11.5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 4830 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 900mW (Ta), 86.2W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SO-8FL |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for NTMFS4854NST3G and get a quote within 24 hours.
