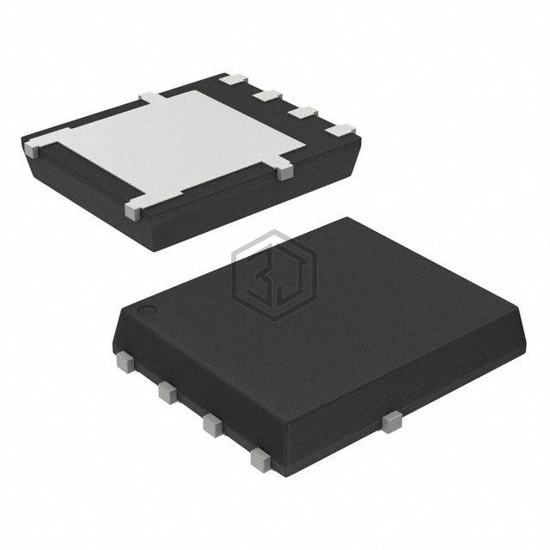

MOSFET N-CH 30V 17A/171A 5DFN
NTMFS4825NFET1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 17A/171A 5DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-PowerTDFN, 5 Leads.
In Stock: 6,400
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Ta), 171A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 40.2 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5660 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 950mW (Ta), 96.2W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
Submit your RFQ for NTMFS4825NFET1G and get a quote within 24 hours.
