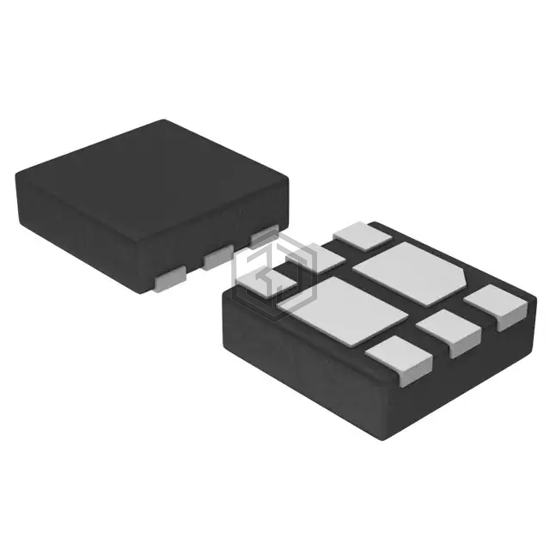

MOSFET N-CH 30V 1.2A 6UDFN
NTLUF4189NZTBG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 1.2A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad.
In Stock: 353,750
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 95 pF @ 15 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-UDFN (1.6x1.6) |
| Package / Case | 6-UFDFN Exposed Pad |
Submit your RFQ for NTLUF4189NZTBG and get a quote within 24 hours.
