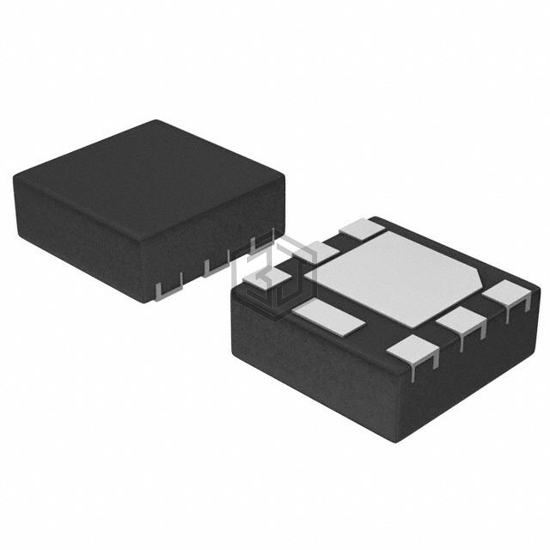

MOSFET P-CH 12V 3.5A 6WDFN
NTLJS2103PTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 3.5A 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.
In Stock: 74,162
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1157 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WDFN (2x2) |
| Package / Case | 6-WDFN Exposed Pad |
Submit your RFQ for NTLJS2103PTAG and get a quote within 24 hours.
