NTHS2101PT1

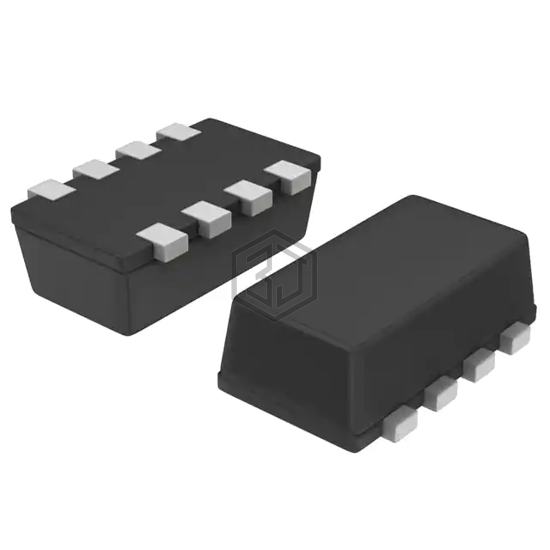

MOSFET P-CH 8V 5.4A CHIPFET
NTHS2101PT1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 8V 5.4A CHIPFET. Key specifications: mounting type Surface Mount, package / case 8-SMD, Flat Lead.
In Stock: 735,279
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 8 V |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 5.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 6.4 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.3W (Ta) |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | ChipFET™ |
| Package / Case | 8-SMD, Flat Lead |
Frequently Asked Questions
NTHS2101PT1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 8V 5.4A CHIPFET
The mounting type of NTHS2101PT1 is Surface Mount.
The package type of NTHS2101PT1 is 8-SMD, Flat Lead.
Yes, NTHS2101PT1 is listed as Obsolete. Consider requesting a quote for alternative parts.
