SIC MOS TO247-4L 22MOHM 1200V

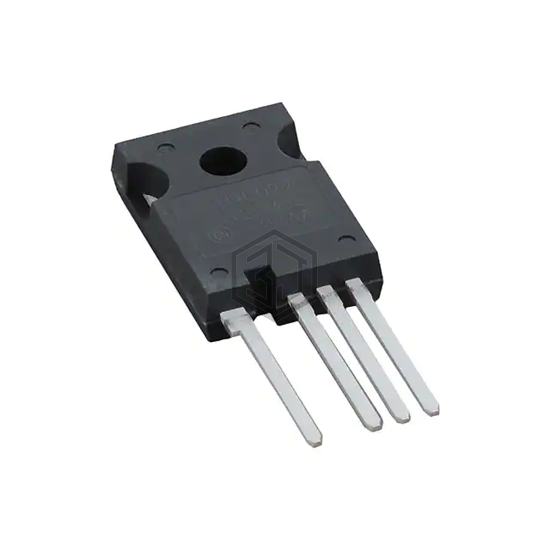

NTH4L022N120M3S is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SIC MOS TO247-4L 22MOHM 1200V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.
In Stock: 184
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 68A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 40A, 18V |
| Vgs(th) (Max) @ Id | 4.4V @ 20mA |
| Gate Charge (Qg) (Max) @ Vgs | 151 nC @ 18 V |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3175 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 352W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4L |
| Package / Case | TO-247-4 |
Submit your RFQ for NTH4L022N120M3S and get a quote within 24 hours.
