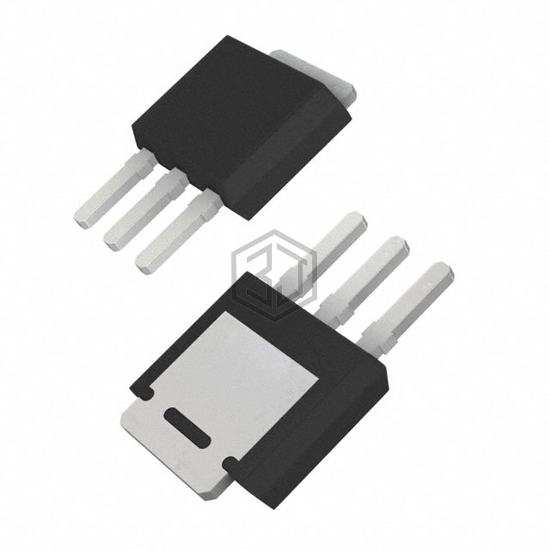

MOSFET N-CH 24V 12A/85A IPAK
NTD85N02R-001 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 24V 12A/85A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.
In Stock: 37,921
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 24 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.2mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17.7 nC @ 5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2050 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta), 78.1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
Submit your RFQ for NTD85N02R-001 and get a quote within 24 hours.
