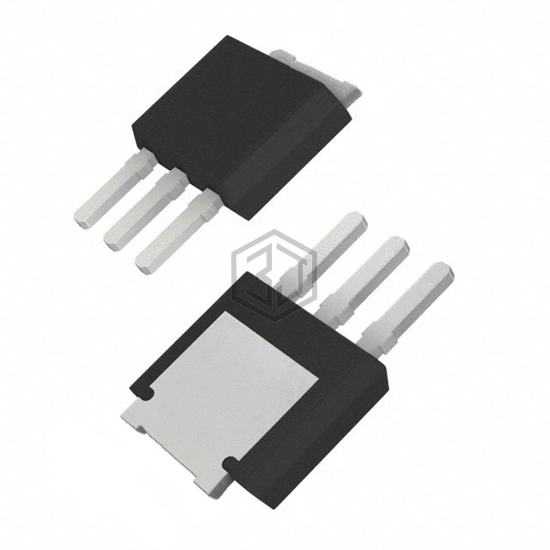

MOSFET N-CH 30V 10.3A/54A IPAK
NTD4906NA-35G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 10.3A/54A IPAK. Key specifications: mounting type Through Hole, package / case TO-251-3 Stub Leads, IPak.
In Stock: 22,125
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 10.3A (Ta), 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1932 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Supplier Device Package | I-Pak |
| Package / Case | TO-251-3 Stub Leads, IPak |
Submit your RFQ for NTD4906NA-35G and get a quote within 24 hours.
