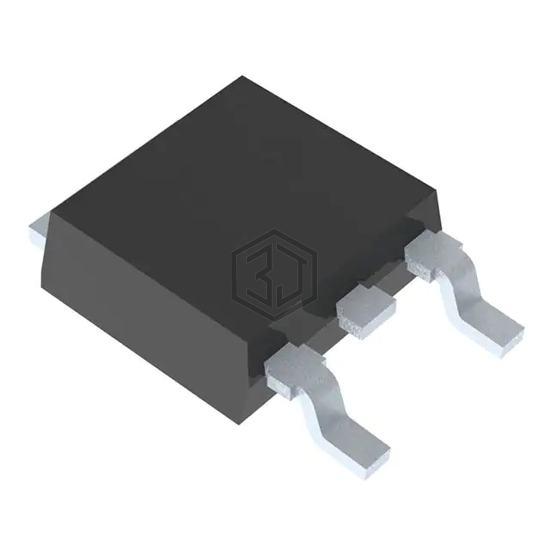

MOSFET N-CH 24V 12.5A/110A DPAK
NTD110N02RT4G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 24V 12.5A/110A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 27,710
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 24 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta), 110A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3440 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta), 110W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Submit your RFQ for NTD110N02RT4G and get a quote within 24 hours.
