MOSFET - POWER, SINGLE, N-CHANNE

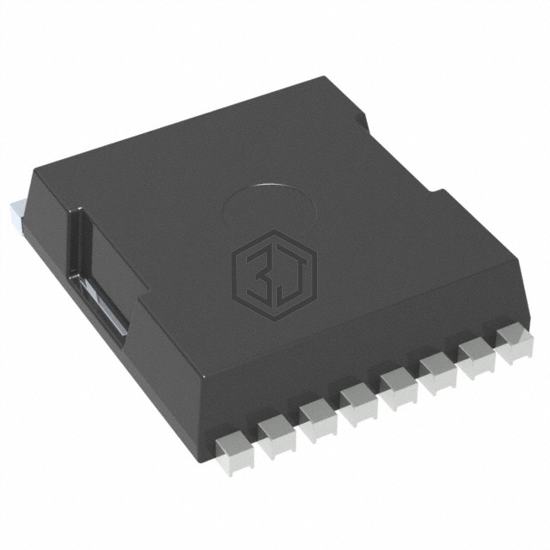

NTBLS1D7N08H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET - POWER, SINGLE, N-CHANNE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 203A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.7mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 479µA |
| Gate Charge (Qg) (Max) @ Vgs | 121 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7675 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 167W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HPSOF |
| Package / Case | 8-PowerSFN |
Submit your RFQ for NTBLS1D7N08H and get a quote within 24 hours.
