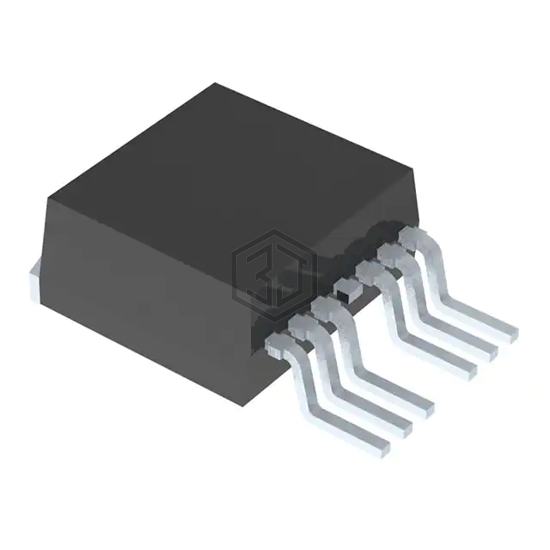

MOSFET N-CH 150V 15A/121A D2PAK
NTBGS6D5N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 15A/121A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).
In Stock: 93
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 121A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 69A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 379µA |
| Gate Charge (Qg) (Max) @ Vgs | 57 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4745 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.7W (Ta), 238W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK (TO-263) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
Submit your RFQ for NTBGS6D5N15MC and get a quote within 24 hours.
