POWER MOSFET, 60 V, 2.2 M?, 211

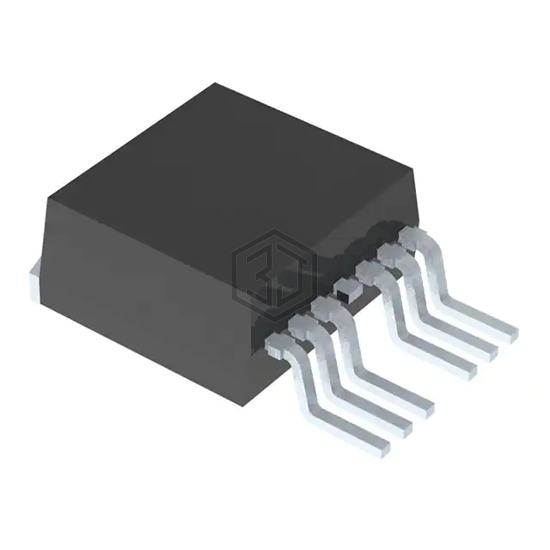

NTBGS002N06C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER MOSFET, 60 V, 2.2 M?, 211. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).
In Stock: 790
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 211A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 12V |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 45A, 12V |
| Vgs(th) (Max) @ Id | 4V @ 225µA |
| Gate Charge (Qg) (Max) @ Vgs | 62.1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4620 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.7W (Ta), 178W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK (TO-263) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
Submit your RFQ for NTBGS002N06C and get a quote within 24 hours.
