SILICON CARBIDE MOSFET, NCHANNEL

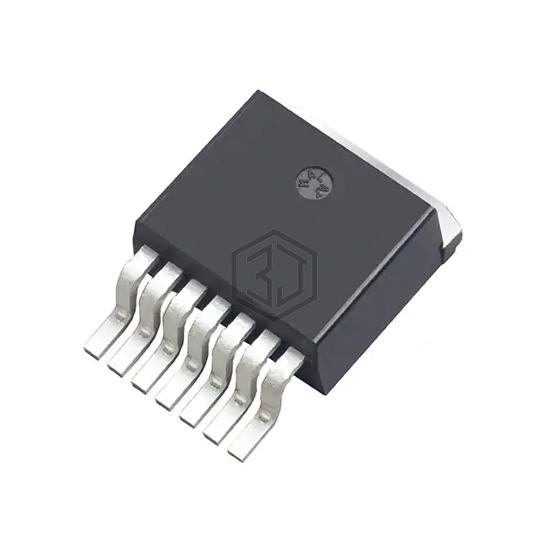

NTBG045N065SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SILICON CARBIDE MOSFET, NCHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 790
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 62A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 25A, 18V |
| Vgs(th) (Max) @ Id | 4.3V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 105 nC @ 18 V |
| Vgs (Max) | +22V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1890 pF @ 325 V |
| FET Feature | - |
| Power Dissipation (Max) | 242W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for NTBG045N065SC1 and get a quote within 24 hours.
