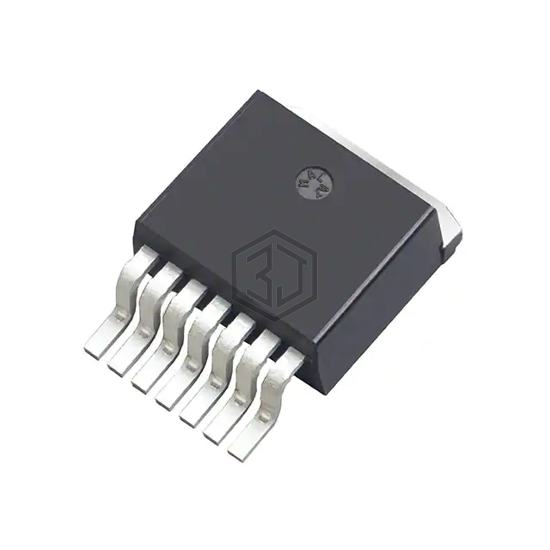

SICFET N-CH 900V 9.8A/112A D2PAK
NTBG020N090SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SICFET N-CH 900V 9.8A/112A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 358
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 9.8A (Ta), 112A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 60A, 15V |
| Vgs(th) (Max) @ Id | 4.3V @ 20mA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 15 V |
| Vgs (Max) | +19V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4415 pF @ 450 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.7W (Ta), 477W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for NTBG020N090SC1 and get a quote within 24 hours.
