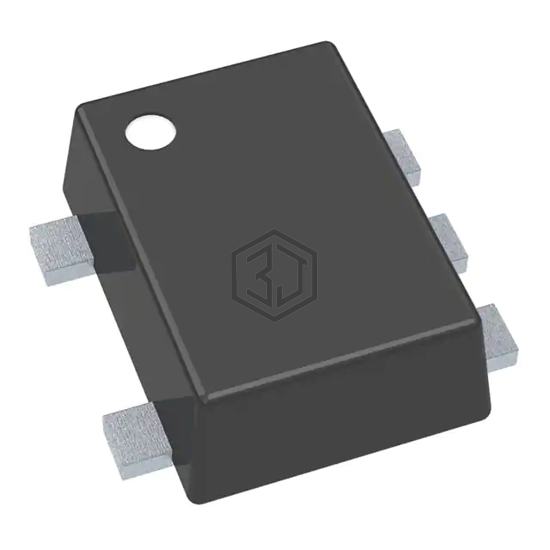

TRANS PREBIAS 1NPN 1PNP SOT553
NSTB1002DXV5T1G is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by onsemi. TRANS PREBIAS 1NPN 1PNP SOT553. Key specifications: mounting type Surface Mount, package / case SOT-553, current - collector (ic) (max) 100mA, 200mA, power - max 500mW.
In Stock: 400,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 200mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 40V |
| Resistor - Base (R1) | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 100 @ 1mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA / 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 250MHz |
| Power - Max | 500mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-553 |
| Supplier Device Package | SOT-553 |
Submit your RFQ for NSTB1002DXV5T1G and get a quote within 24 hours.
