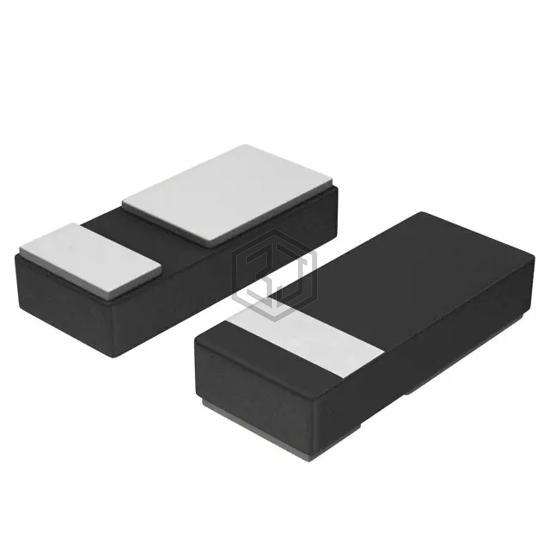

NSR10F20NXT5G
DIODE SCHOTTKY 20V 1A 2DSN
NSR10F20NXT5G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 1A 2DSN. Key specifications: mounting type Surface Mount, package / case 2-XDFN.
In Stock: 17,832
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Supplier Device Package | 2-DSN (1.4x0.6) |
| Operating Temperature - Junction | 150°C (Max) |
Frequently Asked Questions
NSR10F20NXT5G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 1A 2DSN
The mounting type of NSR10F20NXT5G is Surface Mount.
The package type of NSR10F20NXT5G is 2-XDFN.
