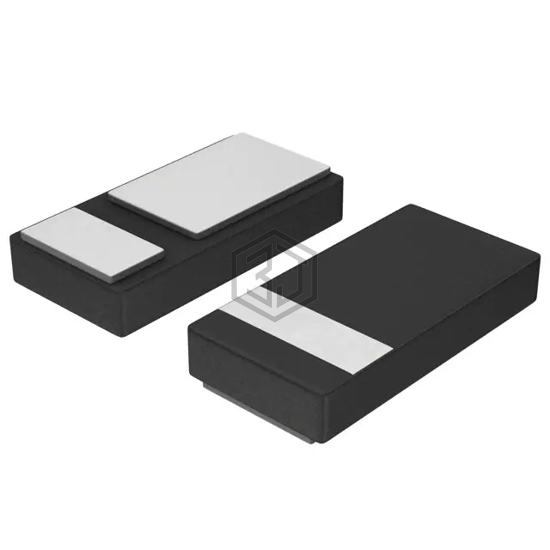

NSR05F40NXT5G
DIODE SCHOTTKY 40V 500MA 2DSN
NSR05F40NXT5G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 40V 500MA 2DSN. Key specifications: mounting type Surface Mount, package / case 0402 (1006 Metric).
In Stock: 949,608
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 75 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 2-DSN (1x0.6), (0402) |
| Operating Temperature - Junction | 150°C (Max) |
Frequently Asked Questions
NSR05F40NXT5G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 40V 500MA 2DSN
The mounting type of NSR05F40NXT5G is Surface Mount.
The package type of NSR05F40NXT5G is 0402 (1006 Metric).
