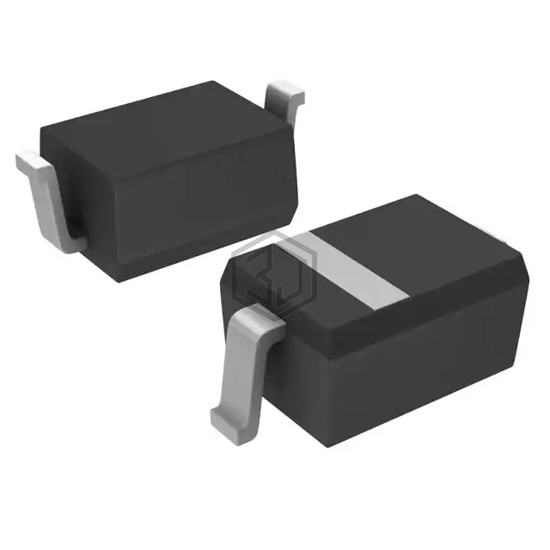

NSR0530HT1G
DIODE SCHOTTKY 30V 500MA SOD323
NSR0530HT1G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 500MA SOD323. Key specifications: mounting type Surface Mount, package / case SC-76, SOD-323.
In Stock: 30,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 30 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
NSR0530HT1G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 500MA SOD323
The mounting type of NSR0530HT1G is Surface Mount.
The package type of NSR0530HT1G is SC-76, SOD-323.
