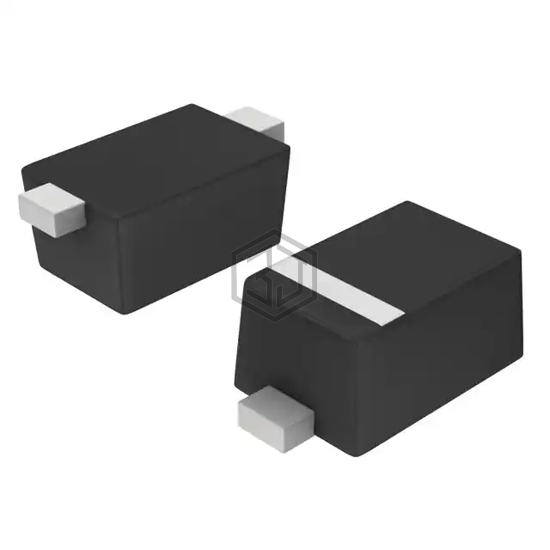

NSR0520V2T1G
DIODE SCHOTTKY 20V 500MA SOD523
NSR0520V2T1G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 500MA SOD523. Key specifications: mounting type Surface Mount, package / case SC-79, SOD-523.
In Stock: 59,716
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 480 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 12 ns |
| Current - Reverse Leakage @ Vr | 75 µA @ 20 V |
| Capacitance @ Vr, F | 35pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
NSR0520V2T1G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 500MA SOD523
The mounting type of NSR0520V2T1G is Surface Mount.
The package type of NSR0520V2T1G is SC-79, SOD-523.
