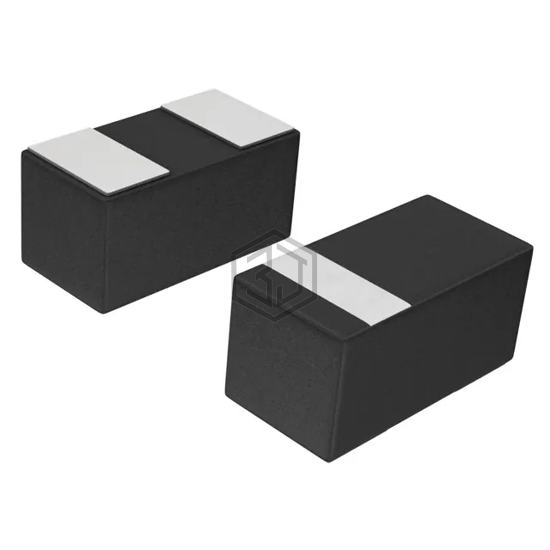

NSR02F30NXT5G
DIODE SCHOTTKY 30V 200MA 2DSN
NSR02F30NXT5G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 200MA 2DSN. Key specifications: mounting type Surface Mount, package / case 0201 (0603 Metric).
In Stock: 5,301
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V |
| Capacitance @ Vr, F | 7pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 2-DSN (0.60x0.30) |
| Operating Temperature - Junction | 125°C (Max) |
Frequently Asked Questions
NSR02F30NXT5G is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 200MA 2DSN
The mounting type of NSR02F30NXT5G is Surface Mount.
The package type of NSR02F30NXT5G is 0201 (0603 Metric).
