TRANS NPN PREBIAS/PNP SOT363

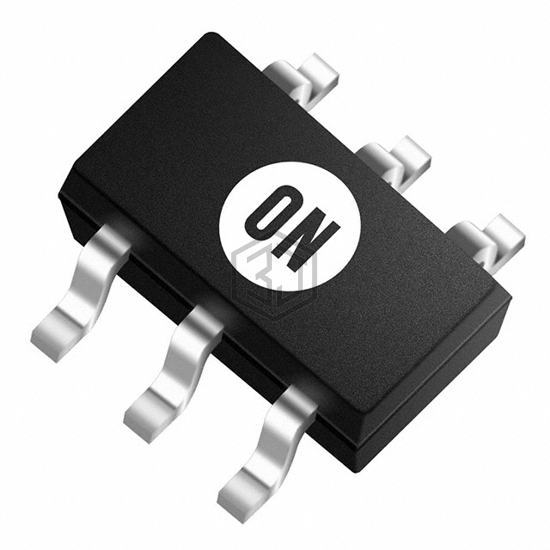

NSM21156DW6T1G is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by onsemi. TRANS NPN PREBIAS/PNP SOT363. Key specifications: mounting type Surface Mount, package / case 6-TSSOP, SC-88, SOT-363, current - collector (ic) (max) 100mA, power - max 230mW.
In Stock: 65,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 65V |
| Resistor - Base (R1) | 10kOhms |
| Resistor - Emitter Base (R2) | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 35 @ 5mA, 10V / 220 @ 2mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA / 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 230mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
Submit your RFQ for NSM21156DW6T1G and get a quote within 24 hours.
