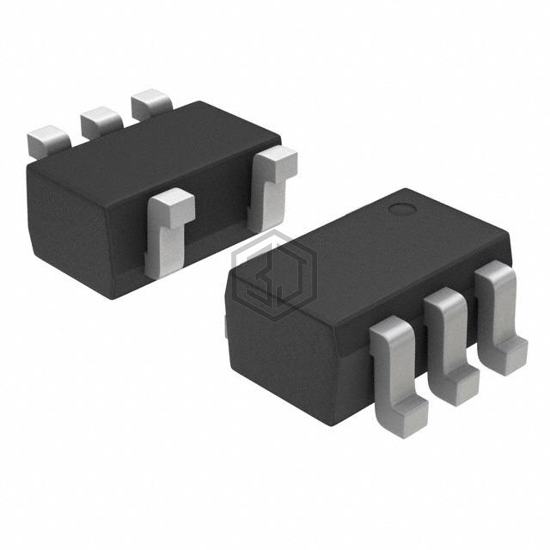

TRANS 2NPN PREBIAS 0.25W SC70
NSB1706DMW5T1G is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by onsemi. TRANS 2NPN PREBIAS 0.25W SC70. Key specifications: mounting type Surface Mount, package / case 5-TSSOP, SC-70-5, SOT-353, current - collector (ic) (max) 100mA, power - max 187mW.
In Stock: 4,324
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 4.7kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 187mW |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
Submit your RFQ for NSB1706DMW5T1G and get a quote within 24 hours.
