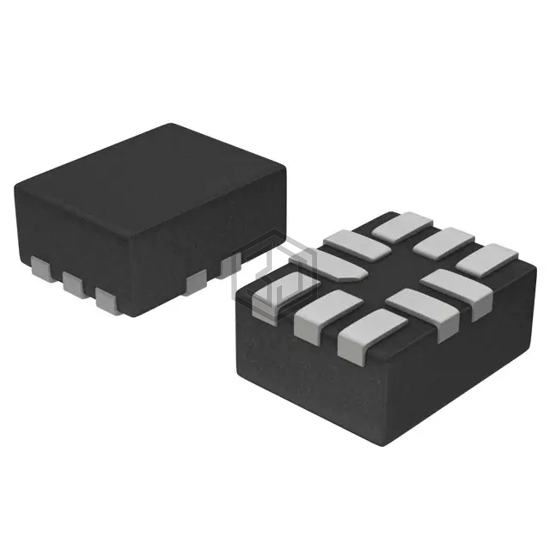

IC ANLG SWITCH DUAL SPDT 10WQFN
NS5A4684SMNTBG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC ANLG SWITCH DUAL SPDT 10WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFQFN, number of circuits 2.
In Stock: 11,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400mOhm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | 19MHz |
| Charge Injection | 38pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFQFN |
| Supplier Device Package | 10-WQFN (1.4x1.8) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NS5A4684SMNTAG | onsemi | IC SWITCH 2 X SPDT 10WFQFN | 100% | View |
| ADG884BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 80% | View |
| RS2259XTSS16 | Runic Technology | IC SWITCH QUAD SPST 16TSSOP | 64% | View |
| RS2259BXTSS16 | Runic Technology | IC SWITCH QUAD SPST 16TSSOP | 64% | View |
| MAX4624EUT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-6 | 62% | View |
| ISL84052IVZ | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16TSSOP | 58% | View |
Submit your RFQ for NS5A4684SMNTBG and get a quote within 24 hours.
