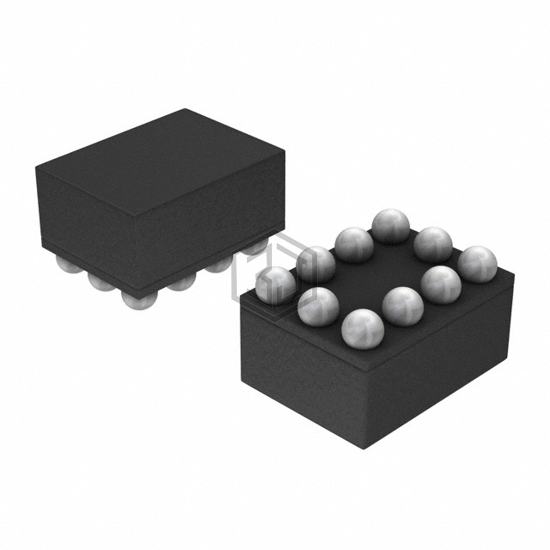

IC SWITCH DUAL SPDT 10FLIPCHIP
NLAS4717FCT1G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFBGA, FCBGA, number of circuits 2.
In Stock: 653,865
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 3.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 40ns |
| -3db Bandwidth | 40MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFBGA, FCBGA |
| Supplier Device Package | 10-Microbump |
NLAS4717FCT1G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2038DQ-T1-E3 | Vishay Siliconix | IC SWITCH DUAL SPDT 8MSOP | 91% | View |
| DG2034DQ-T1-E3 | Vishay Siliconix | IC MULTIPLEXER 4X1 10MSOP | 81% | View |
| MAX4753EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 78% | View |
| DG4599EDL-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SC70-6 | 67% | View |
| CD4016BK3 | Harris Corporation | CMOS LOGIC QUAD BILATERAL SWITCH | 63% | View |
| ADG798HFRZ | Analog Devices Inc. | IC MUX/DEMUX 8:1 16FLATPACK | 60% | View |
