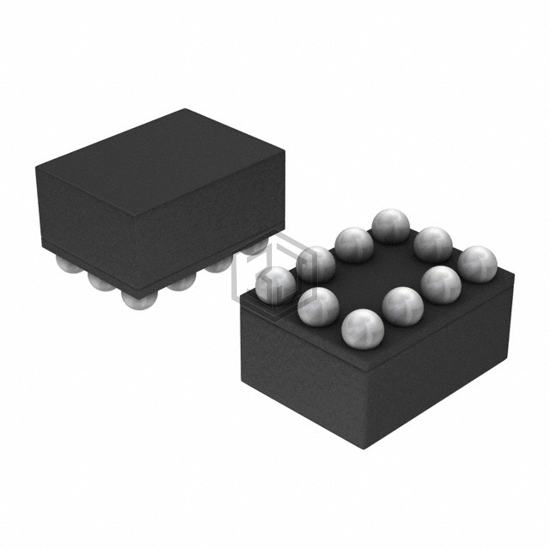

IC SWITCH DUAL SPDT 10MICROBUMP
NLAS4685FCT1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10MICROBUMP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 10-UFBGA, FCBGA, number of circuits 2.
In Stock: 38,540
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| -3db Bandwidth | 11.5MHz |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 208pF, 102pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -81dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFBGA, FCBGA |
| Supplier Device Package | 10-Microbump |
NLAS4685FCT1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLAS4685FCT1G | onsemi | IC SWITCH DUAL SPDT 10MICROBUMP | 100% | View |
| NLAS4684MR2G | onsemi | IC SWITCH DUAL SPDT MICRO10 | 88% | View |
| NLAS4684FCT1G | onsemi | IC SWITCH DUAL SPDT 10MICROBUMP | 88% | View |
| NLAS4684FCTCG | onsemi | IC SWITCH DUAL SPDT 10MICROBUMP | 88% | View |
| NLAS4684MNR2G | onsemi | IC SWITCH DUAL SPDT 10DFN | 88% | View |
| 5962-9201401M2A | Analog Devices Inc. | ANALOG MUX SINGLE 4:1 (AD9300) | 66% | View |
