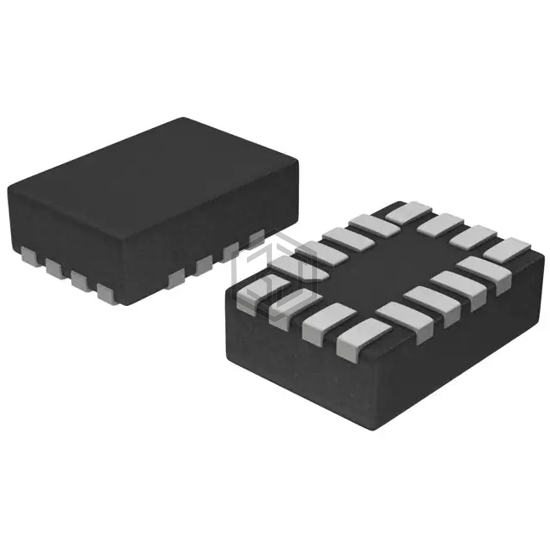

IC SWITCH DUAL DPDT 16WQFN
NLAS3799BLMNR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN, number of circuits 2.
In Stock: 14,267
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | 19MHz |
| Charge Injection | 51pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN |
| Supplier Device Package | 16-WQFN (1.8x2.6) |
NLAS3799BLMNR2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84053IBZ-T | Renesas Electronics America Inc | IC MUX/DEMUX TRIPLE 2X1 16SOIC | 73% | View |
| ISL84684IRZ-T | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 2 CH | 60% | View |
| DG412LEDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 58% | View |
| DG413LEDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 58% | View |
| DG411LEDQ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 58% | View |
| DG412LEDY-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 58% | View |
Submit your RFQ for NLAS3799BLMNR2G and get a quote within 24 hours.
