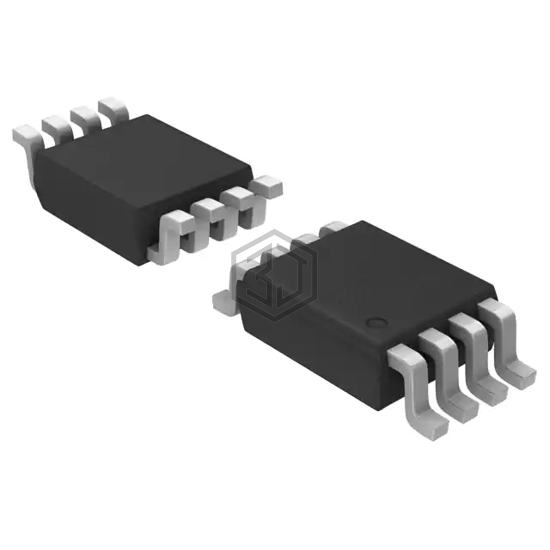

IC INVERTER SCHMITT 3CH 3-IN US8
NL37WZ14US is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER SCHMITT 3CH 3-IN US8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 275,349
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.4V ~ 1.2V |
| Logic Level - High | 1.8V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | US8 |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
NL37WZ14US is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NL27WZ14DTT1 | onsemi | IC INVERT SCHMITT 2CH 2-IN 6TSOP | 95% | View |
| NLX3G14CMX1TCG | onsemi | IC INVERT SCHMITT 3CH 3IN 8ULLGA | 94% | View |
| NLX2G14AMUTCG | onsemi | IC INVERT SCHMITT 2CH 2-IN 6UDFN | 89% | View |
| NL27WZ04DTT1G | onsemi | IC INVERTER 2CH 2-INP 6TSOP | 88% | View |
| NL27WZ04DFT2G | onsemi | IC INVERTER 2CH 2-INP SC88 | 88% | View |
| NL27WZ04DBVT1G | onsemi | IC INVERTER 2CH 2-INP SC74 | 88% | View |
Submit your RFQ for NL37WZ14US and get a quote within 24 hours.
