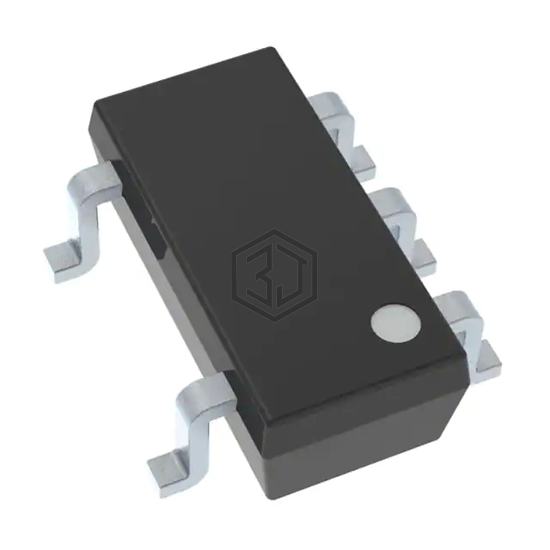

IC INVERT SCHMITT 2CH 2-IN SC74A
NL27WZ14DBVT1G is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 2CH 2-IN SC74A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SC-74A, SOT-753.
In Stock: 6,756
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.4V ~ 2.3V |
| Logic Level - High | 1V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-74A |
| Package / Case | SC-74A, SOT-753 |
NL27WZ14DBVT1G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NL27WZ14DFT2G | onsemi | IC INVERT SCHMITT 2CH 2-INP SC88 | 96% | View |
| NLX2G14BMX1TCG | onsemi | IC INVERT SCHMITT 2CH 2IN 6ULLGA | 94% | View |
| NL27WZ04MU1TCG | onsemi | IC INVERTER 2CH 2-INP 6UDFN | 94% | View |
| NL27WZ06DBVT1G | onsemi | IC INVERTER OD 2CH 2-INP SC74 | 90% | View |
| NL17SZU04DFT2G-Q | onsemi | UNBUFFERED SINGLE INVERTER | 89% | View |
| NLV17SZ14DFT2G | onsemi | IC INVERT SCHMITT 1CH 1-IN SC88A | 82% | View |
Submit your RFQ for NL27WZ14DBVT1G and get a quote within 24 hours.
