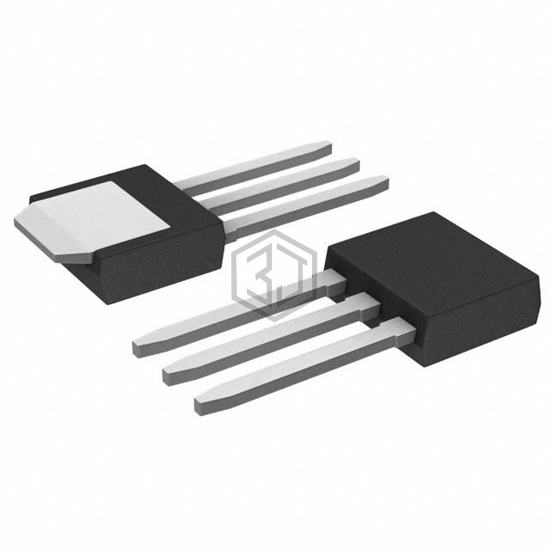

MOSFET N-CH 600V 11A IPAK
NDD60N360U1-35G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 600V 11A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.
In Stock: 32,775
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 790 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 114W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-Pak |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
Submit your RFQ for NDD60N360U1-35G and get a quote within 24 hours.
