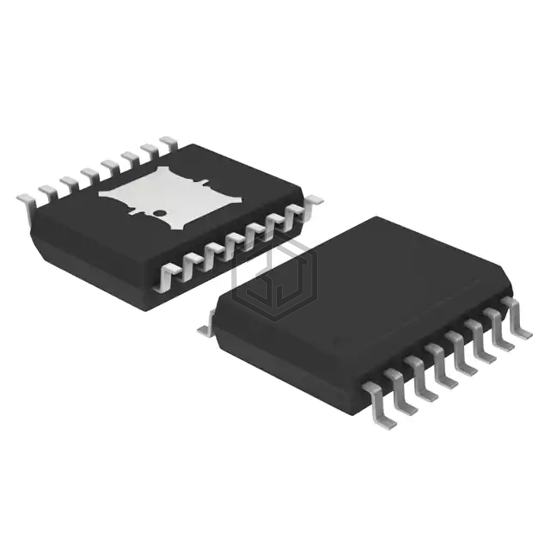

IC REG LINEAR 5V/2.6V 16SOIC
NCV8509PDW26 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V/2.6V 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 10 mA.
In Stock: 7,560
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 50V |
| Voltage - Output (Min/Fixed) | 5V, 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA, - |
| Current - Output | 115mA, 100mA |
| Current - Quiescent (Iq) | 175 µA |
| Current - Supply (Max) | 10 mA |
| PSRR | - |
| Control Features | Reset |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 16-SOIC |
NCV8509PDW26 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3062EDCB-5#TRMPBF | Analog Devices Inc. | IC REG LINEAR 5V 200MA 8DFN | 80% | View |
| LT3063EMS8E-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8MSOP | 68% | View |
| LT3062IDCB-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8DFN | 68% | View |
| LT3063EDCB-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8DFN | 68% | View |
| LT3063EDCB-3.3#TRMPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8DFN | 68% | View |
| MAX5091BASA+ | Analog Devices Inc./Maxim Integrated | IC REG LINEAR 3.3V 100MA 8SOIC | 57% | View |
