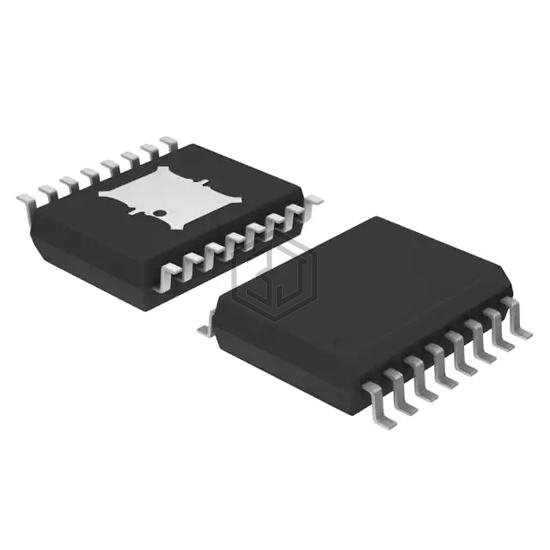

IC REG LINEAR 3.3V/1.8V 16SOIC
NCV8509PDW18 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 3.3V/1.8V 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 10 mA.
In Stock: 1,316
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 50V |
| Voltage - Output (Min/Fixed) | 3.3V, 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA, - |
| Current - Output | 115mA, 100mA |
| Current - Quiescent (Iq) | 175 µA |
| Current - Supply (Max) | 10 mA |
| PSRR | - |
| Control Features | Reset |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 16-SOIC |
NCV8509PDW18 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3063EMS8E-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8MSOP | 80% | View |
| LT3062EDCB-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8DFN | 80% | View |
| LT3063IMS8E-5#PBF | Analog Devices Inc. | IC REG LINEAR 5V 200MA 8MSOP | 68% | View |
| LT3062IMS8E-5#TRPBF | Analog Devices Inc. | IC REG LINEAR 5V 200MA 8MSOP | 68% | View |
| TLE4699EXUMA1 | Infineon Technologies | IC REG LIN 5V 200MA SSOP-14-EP | 66% | View |
| LP3856ES-3.3 | National Semiconductor | IC REG LIN 3.3V 3A DDPAK/TO263-5 | 51% | View |
Submit your RFQ for NCV8509PDW18 and get a quote within 24 hours.
