IC REG LINEAR 5V 400MA 16SOIC

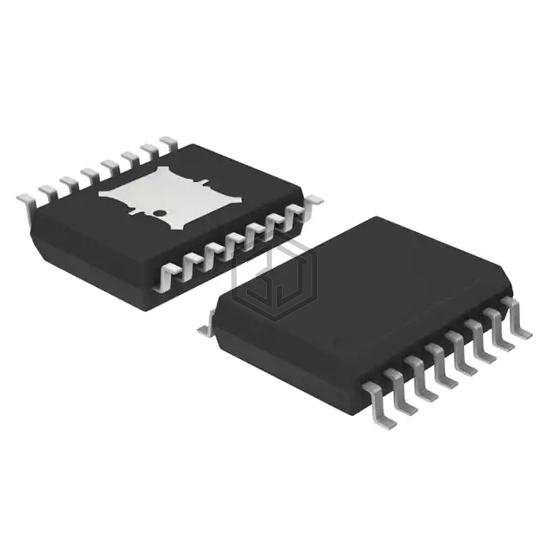

NCV8504PW50G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 400MA 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 16-SOIC (0.295", 7.50mm Width) Exposed Pad, current - supply (max) 45 mA.
In Stock: 887
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 400mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 45 mA |
| PSRR | - |
| Control Features | Reset |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 16-SOIC |
NCV8504PW50G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV8506D2T50 | onsemi | IC REG LINEAR 5V 400MA D2PAK-7 | 100% | View |
| NCV8506D2T50R4 | onsemi | IC REG LINEAR 5V 400MA D2PAK-7 | 100% | View |
| NCV8505D2T50 | onsemi | IC REG LINEAR 5V 400MA D2PAK-7 | 95% | View |
| NCV8506D2T33R4G | onsemi | IC REG LINEAR 3.3V 400MA D2PAK-7 | 87% | View |
| NCV8506D2T33 | onsemi | IC REG LINEAR 3.3V 400MA D2PAK-7 | 87% | View |
| NCV8504PW33G | onsemi | IC REG LINEAR 3.3V 400MA 16SOIC | 87% | View |
