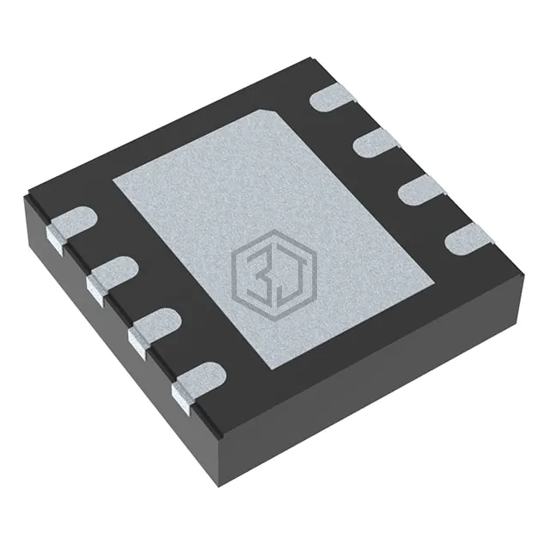

IC REG LINEAR 1.5V 300MA 8DFNW
NCV8164AML150TCG is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1.5V 300MA 8DFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, current - output 300mA.
In Stock: 1,077
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.315V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 40 µA |
| Current - Supply (Max) | - |
| PSRR | 83dB ~ 61dB (100Hz ~ 100kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFNW (3x3) |
Submit your RFQ for NCV8164AML150TCG and get a quote within 24 hours.
