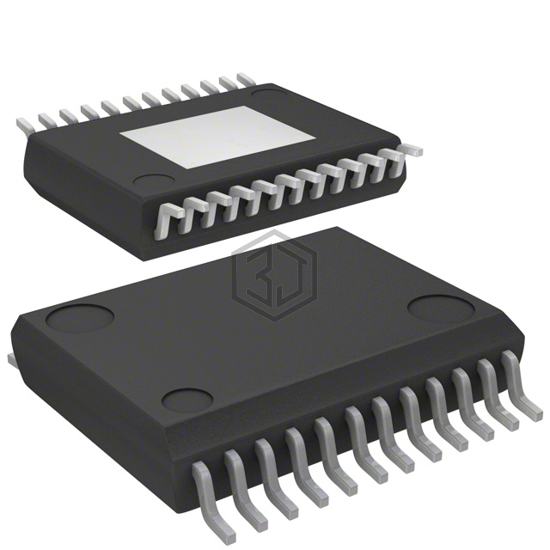

IC MOTOR DRVR 3.15V-5.25V 24SSOP
NCV7720DQR2G is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRVR 3.15V-5.25V 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.15V ~ 5.25V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 2,382
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (10) |
| Interface | SPI |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 550mA |
| Voltage - Supply | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 24-SSOP-EP |
NCV7720DQR2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV7720DQAR2G | onsemi | IC MOTOR DRIVER 24SSOP | 100% | View |
| AMIS30624C6245G | onsemi | IC MTR DRV BIPLR 4.75-5.5V 32QFP | 88% | View |
| MLX90287LZC-AAA-000-RX | Melexis Technologies NV | IC MOTOR DRIVER PWM 8SOIC | 86% | View |
| MTS62C19A-LS105 | Microchip Technology | IC MTR DRV BIPOLR 4.5-5.5V 24SOP | 83% | View |
| MTS62C19A-HS105 | Microchip Technology | IC MTR DRV BIPOLR 4.5-5.5V 24SOP | 83% | View |
| AMIS30622C6227RG | onsemi | IC MTR DRV BIPOLR 6.5-29V 20SOIC | 83% | View |
Submit your RFQ for NCV7720DQR2G and get a quote within 24 hours.
