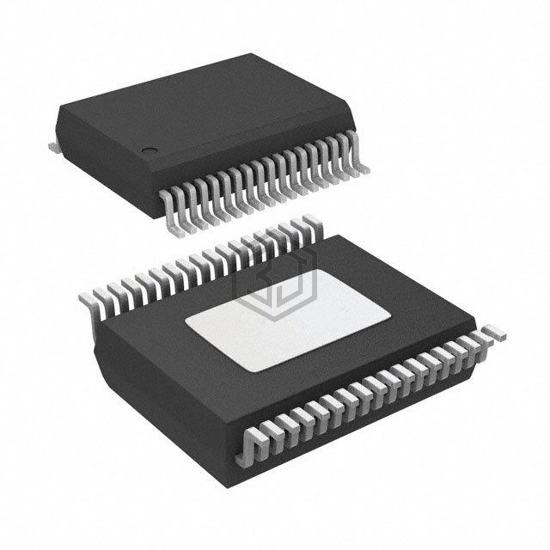

IC MOTOR DRIVER 36SSOP
NCV7710DQBR2G is a PMIC - Motor Drivers, Controllers manufactured by onsemi. IC MOTOR DRIVER 36SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 28V, package / case 36-BFSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 7,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM, SPI |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Automotive |
| Current - Output | 10A |
| Voltage - Supply | 5.5V ~ 28V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 36-SSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| POWERSTEP01 | STMicroelectronics | IC MTR DRV BIPLR 3.3/5V 89VFQFPN | 87% | View |
| L9958SB | STMicroelectronics | IC MTRDRV BIPLR 4.5-5.5V 16PWRSO | 87% | View |
| L9958XPTR | STMicroelectronics | IC MOTOR DRVR BIPOLAR 24POWERSSO | 87% | View |
| L9958SBTR | STMicroelectronics | IC MTRDRV BIPLR 4.5-5.5V 16PWRSO | 87% | View |
| POWERSTEP01TR | STMicroelectronics | IC MTR DRV BIPLR 3.3/5V 89VFQFPN | 87% | View |
| L9958TR | STMicroelectronics | IC MTRDRV BIPLR 4.5-5.5V 20PWRSO | 87% | View |
Submit your RFQ for NCV7710DQBR2G and get a quote within 24 hours.
